Subminiature Relay

Huaguan is a professional China Subminiature Relay manufacturer and supplier, if you are looking for the best Subminiature Relaywith low price, consult us now!

◉ Small size light weight
◉ Low coil power consumption
◉ RoHS Compliant

Model:N4078

Send Inquiry

PDF DownLoad

Product Description

Huaguan is a professional China Subminiature Relay manufacturer and supplier, if you are looking for the best Subminiature Relaywith low price, consult us now! Sincerely look forward to cooperating with you in the near future.

Small size, light weight.

Low coil power consumption.
PC board mounting.
Suitable for household electrical appliances, automation system, electronic equipment, instrument, meter, telecommunication facilities and remote control facilities.


Ordering Information

1 Part number: N4078
2 Contact arrangement: 2C:2C
3 Coil rated voltage(V): DC:5,9,12,24

4 Coil power: 0.2W; 0.36W


Contact Data

Contact Arrangement

2C(DPDT(B-M))

Contact Material

Ag,AgNi(Au plated)

Contact Rating (resistive)

2A/30VDC;1A/125VAC,24VDC

Max. Switching Power

60W        125VA

Max. Switching Voltage

30VDC    220VAC

Max. Switching Current:2A

Contact Resistance

≤50mΩ

Item 4.12 of IEC 61810-7

Operational

Life

Electrical

1X105

Item 4.30 of IEC 61810-7

Mechanical

1X107

Item 4.31 of IEC 61810-7

CAUTION:

1.For the intermediate current, it only applies to the room temperature.

2.For gold plated version, the min. Switching current and min. switching voltage is 50mA/6VDC; for non gold plated version(standard type),the min. switching current and min. switching voltage is 100mA/6VDC.


Coil Parameter

Dash

numbers

Coil voltage

VDC

Coil resistance

Ω±10%

Pick-up

 voltage

VDC(max)

(70%of rated

voltage )

Drop-out

voltage

VDC(min)

(10% of rated

 voltage)

Coil

power

W

Operate

time

ms

Release

time

ms

Rated

Max.

005-200

5

6.5

125

3.50

0.5

0.20

≤6

≤5

009-200

9

11.7

405

6.75

0.9

012-200

12

15.6

720

8.4

1.2

024-200

24

31.2

2880

18.0

2.4

005-360

5

6.5

70

3.50

0.5

0.36

≤6

≤5

012-360

12

15.6

400

8.40

1.2

024-360

24

31.2

1600

18.0

2.4

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.


Characteristics

Insulation Resistance

500MΩ min (at 500VDC)

Item 4.11 oflEC 61810-7

Dielectric Strength

Between Contacts

Between Contact and Coil

50Hz 500V

50Hz 1000V

Item 4.9 of IEC 61810-7

Item 4.9 of IEC 61810-7

Shock Resistance

490m/s² 11ms

Item 4.26 of IEC 61810-7

Vibration Resistance

10Hz~70Hz Double amplitude 1.5mm

Item 4.28 of IEC 61810-7

Terminals Strength

5N

Item 4.24 of IEC 61810-7

Ambient Temperature

-30℃~70℃



Relative Humidity

5% to 85%

Item 4.16 of IEC 61810-7

Mass

5.5g

Item 4.7 of IEC 61810-7


Safety Approvals

Safety approval

UL&CUR

TUV

Load

2A/30VDC;1A/125VAC;1A/24VDC

1A/125VAC;24VDC

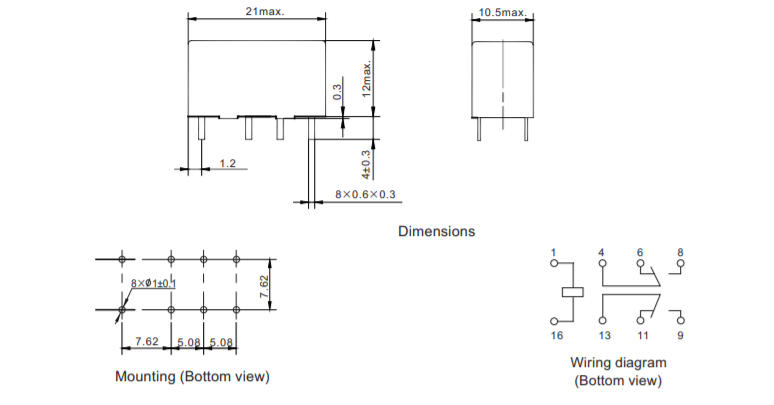

Dimensions


Reference Data
