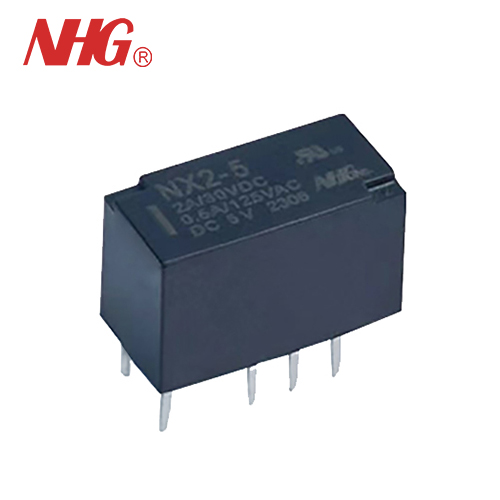

Miniature Signal Relay

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Miniature Signal Relay. We look forward to cooperating with you.

◉ Low signal relay
◉ Conforms to FCC Part 68 2500V Surge and Dielectric 1500VAC
◉ Rohs Compliant

Model:NX

Send Inquiry

PDF DownLoad

Product Description

You can rest assured to buy customized Miniature Signal Relay from us. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

DIL pitch terminals .

Conforms to FCC Part 68 2.5kV surge and dielectric 1500VAC.
High contact capacity 2A/30VDC.
Application for telecommunication equipment, office equipment, security alarm systems, measuring instruments,medical monitoring equipment , audio visual equipment, flight simulator, sensor control.


Ordering Information

1 Part number: NX
2 Contact arrangement: 2:2C
3 Coil rated Voltage(V): DC:3,4.5,5,6,9,12,24

4 Contact Material: NIL:AgPd W:AgNi


Contact Data

Contact Arrangement

2C(DPDT(B-M)) (Bifurcated Crossbar)

Contact Material

AgPd(Au plated ) AgNi(Au plated)

Contact Rating (resistive)

2A/30VDC; 0.5A/125VAC

Max. Switching Power

60W         62.5VA

Min. Switching load:0.01mA/10mV(Reference Value)

Max. Switching Voltage

220VDC    250VAC

Max. Switching Current:2A

Contact Resistance

≤70mΩ

Item 4.12 of IEC 61810-7

Operational

Life

Electrical

1X105

Item 4.30 of IEC 61810-7

Mechanical

1X108

Item 4.31 of IEC 61810-7

CAUTION:

Relays previously tested or used above 10mA resistive at 6V maximum DC or peak AC open circuit are not recommended for subsequent use in low level applications.


Coil Parameter

Dash

numbers

Coil voltage

VDC

Coil resistance

Ω±10%

Pick-up

 voltage

VDC(max)

(75% of rated

voltage )

Drop-out

voltage

VDC(min)

(10% of rated

voltage)

Coil

power

W

Operate

time

ms

Release

time

ms

Rated

Max.

MIBS-003

3

4.5

64.3

2.25

0.3

0.14

≤4


≤4


MIBS -005

4.5

6.7

145

3.38

0.45

0.14

MIBS -006

5

7.5

178

3.75

0.5

0.14

MIBS -009

6

9.0

257

4.50

0.6

0.14

MIBS -012

9

13.5

579

6.75

0.9

0.14

MIBS -024

12

18.0

1028

9.00

1.2

0.14

MIBS -048

24

36.0

2880

18.0

2.4

0.20

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.
3.Unless otherwise stated, the rated coil voltage specified in coil parameter and its suitable polarity(if applicable) shall be used for all tests and its application to the relay.


Characteristics

Insulation Resistance

1000MΩ min (at 500VDC)

Item 4.11 of IEC 61810-7

Dielectric Strength





Between Open Contacts Between Coil & Contacts Between Contact Poles

1000VAC 1min 1500VAC1min 1000VAC 1min

Item 4.9 of IEC 61810-7

Surge Withstand Voltage





Between Open Contacts

Between Coil & Contacts

1500V

2500V

FCC 68

Shock Resistance

Functional:735m/s² 11ms;

Destructive:980 m/s² 6ms

Item 4.26 of IEC 61810-7

Vibration Resistance

10Hz〜55Hz Double amplitude Functional:3.3mm Destructive:5mm

Item 4.28 of IEC 61810-7

Terminals Strength

5N

Item 4.24 of IEC 61810-7

Temperature Range

-40℃-85℃(-40° F〜185° F)



Relative Humidity

5% to 85%

Item 4.16 of IEC 61810-7

Mass

Approx. 2g

Item 4.7 of IEC 61810-7


Safety Approvals

Safety approval

UL&CUR

Load

0.5A/125VAC; 2A/30VDC


Dimensions
