Surface mount Type with “L ” SMT shaped Terminals.
Conforms to FCC Part 68 1.5kV Surge and Dielectric 1000VAC.Medical Monitoring Equipment,Audio Visual Equipment, Flight Simulator,Sensor Control.

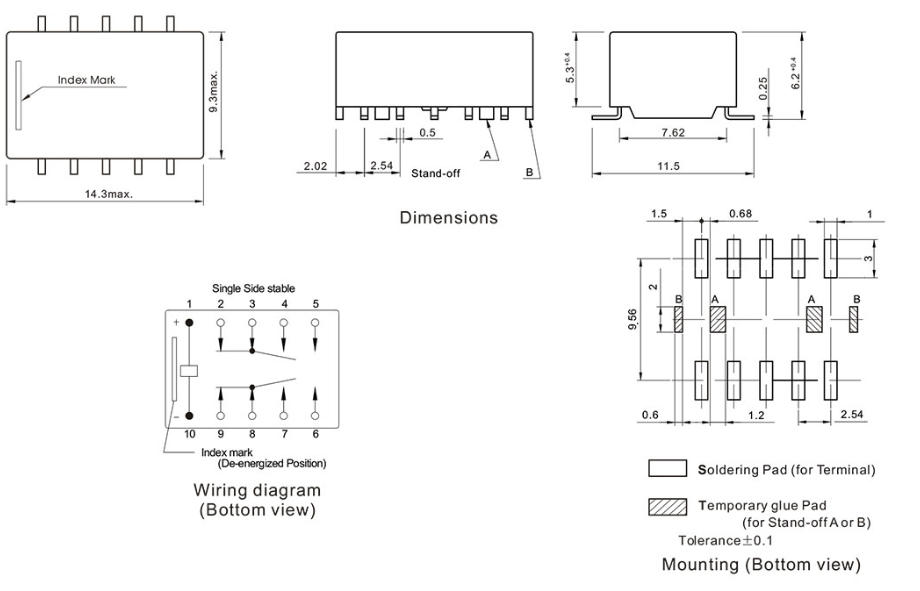

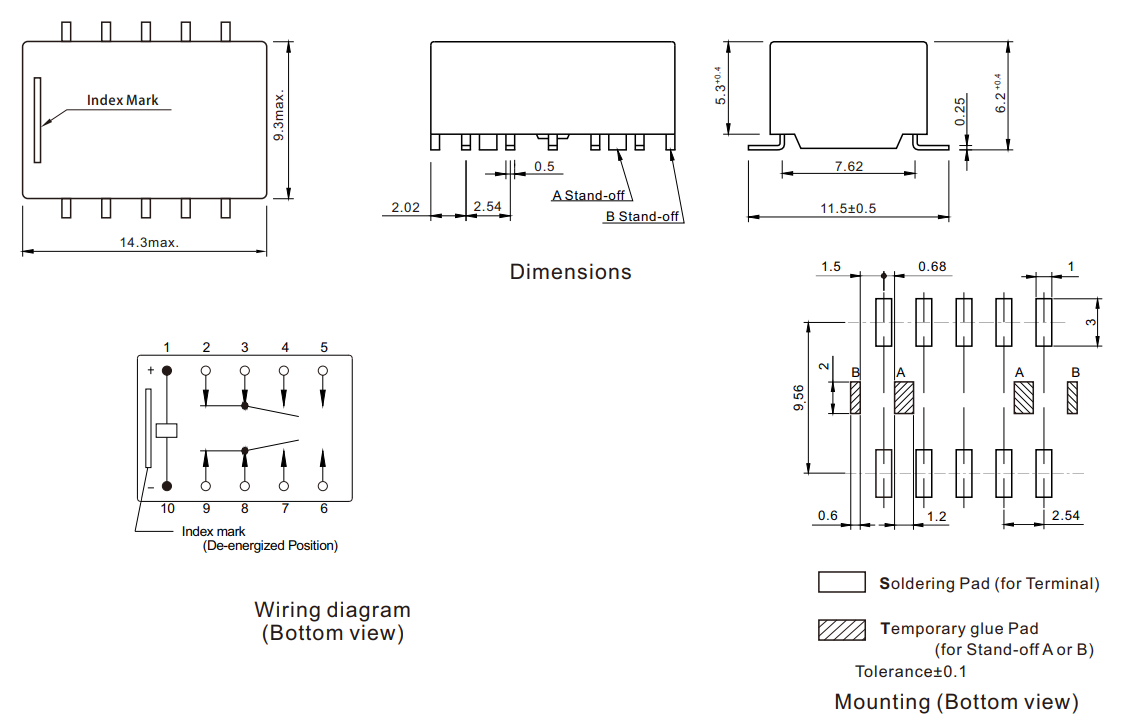

1 Part number: PS
2 Operating function: Nil: Single Side Stable;
L:1 Coil Latching; K:2 Coil Latching
3 Coil rated voltage(V): DC:3,4.5,5,6,9,12,24
4 Contact material: Nil: AgPd; W: AgNi
|
Contact Arrangement |
2C(DPDT(B-M))(Bifurcated Crossbar) |
||
|
Contact Material |
AgPd(Gold clad) AgNi(Gold clad) |
||
|
Contact Rating (resistive) |
1A,2A/30VDC; 0.5A/125VAC |
||
|

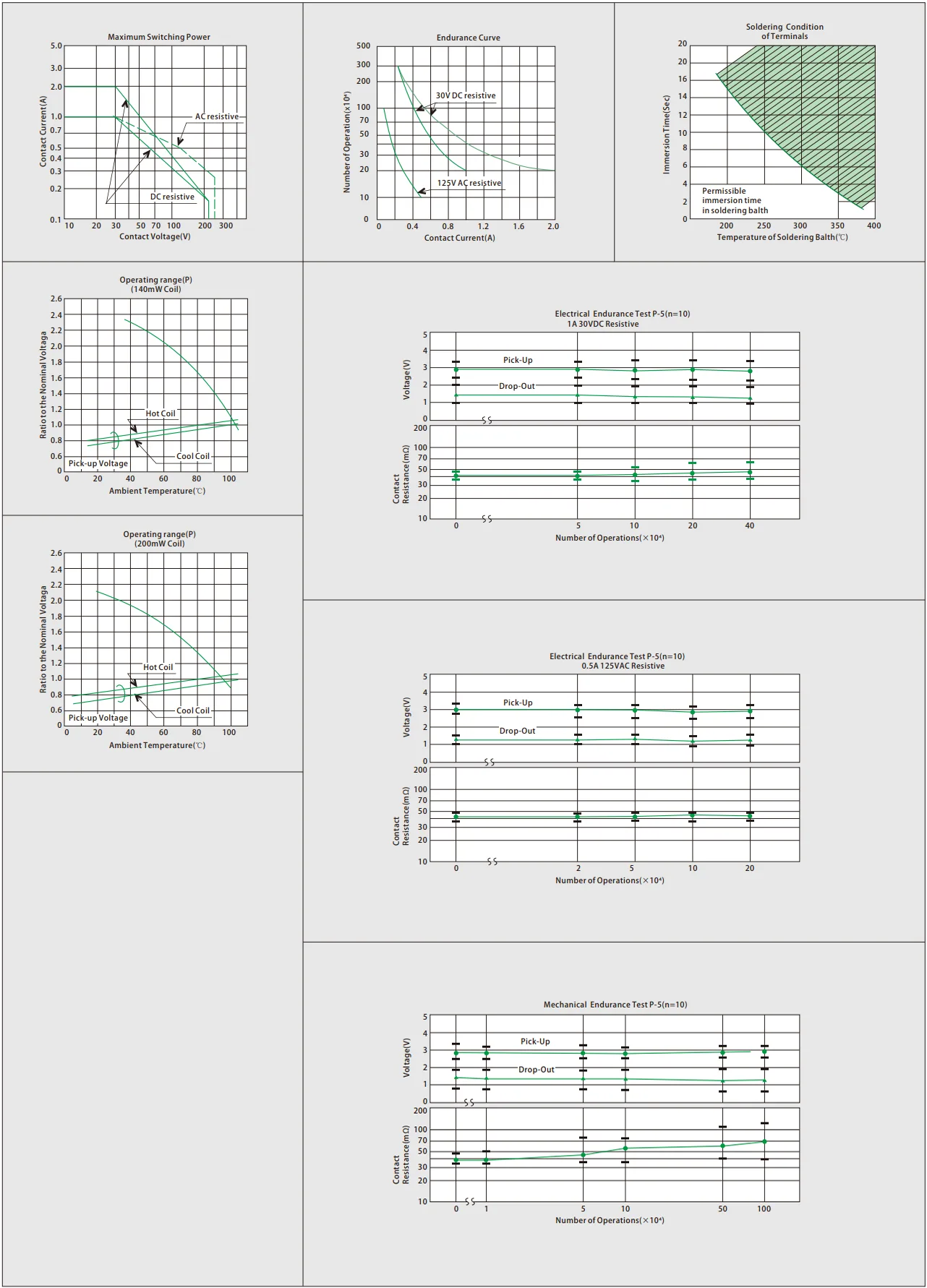

Max. Switching Power |
60W 62.5VA |
Min. Switching load 0.01mA/10m Reference Value |
|
|
Max. Switching Voltage |
220VDC 250VAC |
Max. Switching Current:2A |
|
|
Contact Resistance or Voltage drop |
≤50m |
Item 4.12 of IEC 61810-7 |
|
|
Operational Life |
Electrical |
2X105(DC AgPd);1X105(DC AgNi) 1X105(AC) |
Item 4.30 of IEC 61810-7 |
|
Mechanical |
1X108 |
Item 4.31 of IEC 61810-7 |
|
CAUTION:
Relays previously tested or used above 10mA resistive at 6V maximum £¨DC or peak AC£© open circuit are not recommended for subsequent use in low level applications.
|
Dash numbers |
Coil voltage VDC |
Coil resistance Ω±10% |

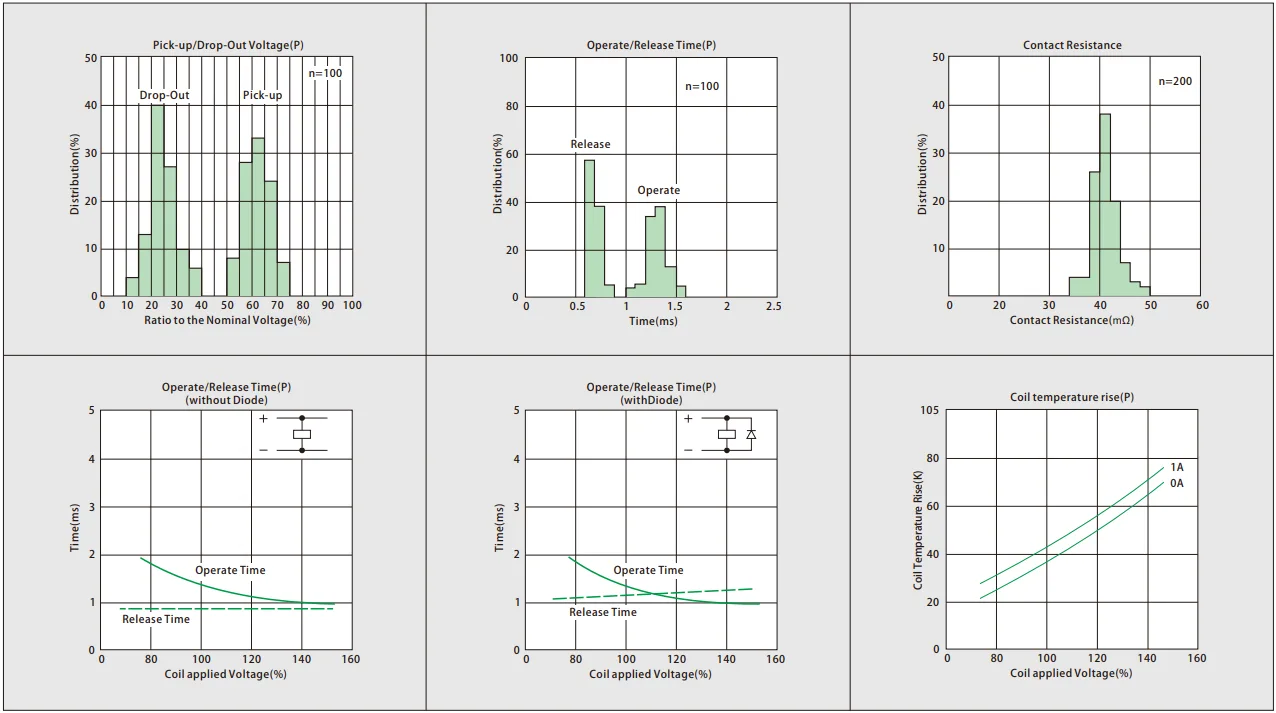

Pick up voltage VDC(max) (75%of rated voltage ) |
Release voltage VDC(min) (10%of rated voltage) |
Coil power W |
Operate Time ms |
Release /Reset Time ms |
||
|
Rated |
Max. |
||||||||
|
PS-003 PS-004 PS-005 PS-006 PS-009 PS-012 PS-024 |
3 4.5 5 6 9 12 24 |
7.5 11.25 12.5 15.0 22.5 30.0 48.0 |
64.3 144.6 178 257 579 1028 2880 |
2.25 3.38 3.75 4.50 6.75 9.00 18.0 |
0.3 0.45 0.5 0.6 0.9 1.2 2.4 |
0.14 0.14 0.14 0.14 0.14 0.14 0.20 |
Approx.2 |
Approx.1 |
|
|
1 Coil Latching |
Reset(Max) |
|
Reset |
||||||
|
PSL-003 PSL-004 PSL-005 PSL-006 PSL-009 PSL-012 PSL-024 |
3 4.5 5 6 9 12 24 |
8.7 13.0 14.5 17.4 26.1 34.8 57.6 |
90 202.5 250 360 810 1440 3840 |
2.25 3.38 3.75 4.50 6.75 9.00 18.0 |
-2.25 -3.38 -3.75 -4.50 -6.75 -9.00 -18.0 |
0.10 0.10 0.10 0.10 0.10 0.10 0.15 |
Approx.2 |
Approx.2 |
|
|
2 Coil Latching |
Set Coil ResetCoil |
|
Reset(Max) |
|
Reset |
||||
|
PSK-003 PSK-004 PSK-005 PSK-006 PSK-009 PSK-012 PSK-024 |
3 4.5 5 6 9 12 24 |
9 9 10 12 18 24 36 |
45 101 125 180 405 720 1920 |
45 101 125 180 405 720 1920 |
2.25 3.38 3.75 4.50 6.75 9.00 18.0 |
2.25 3.38 3.75 4.50 6.75 9.00 18.0 |
0.20 0.20 0.20 0.20 0.20 0.20 0.30 |
Approx.2 |
Approx.2 |
CAUTION:
1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.
2.Pickup and release(reset) voltage are for test purposes only and are not to be used as design criteria.
3.When latching relays are installed in equipment, the latch and reset coil should not be powered simultaneously. Coil should not be pulsed with less than the nominal coil voltage and pulse width should be a minimum of three times the specified operate time of the relay. If these conditions are not followed, it is possible for the relay to be in the magne- tically neutral position
|
Electrostatic capacitance |
|
|
|
Between open Contacts |
Approx.0.4pF |
Item4.41 of IEC61810-7 |
|
Between coil & Contacts |
Approx.0.9pF |
Item 4.41 oflEC 61810-7 |
|
Between Contact Poles |
Approx.0.2pF |
Item 4.41 oflEC 61810-7 |
|
Insulation Resistance |
1000MΩ min (at 500VDC) |
Item 7 oflEC 60255-5 |
|
Dielectric Strength |
|
|
|
Between open Contacts Between coil & Contacts Between Contact Poles |
1000VAC 1min 1000VAC 1min 1000VAC 1min |
Item 6 oflEC 60255-5 Item 6 oflEC 60255-5 Item 6 oflEC 60255-5 |
|
Surge Withstand Voltage |
|
|
|
Between open Contacts Between coil & Contacts Between Contact Poles |
1500V 1500V 2500V |
FCC 68 FCC68 FCC 68 |
|
Shock resistance |
Functional:500m/s² 11ms; Survival:1000 m/s² 6ms |
IEC 68-2-27Test Ea |
|
Vibration resistance |
10Hz~55Hz Double amplitude Functional: 3mm Survival:5mm |
IEC 68-2-6 Test Fc |
|
Terminalsstrength |
5N |
IEC68-2-21 Test Ua1 |
|
Solderability |

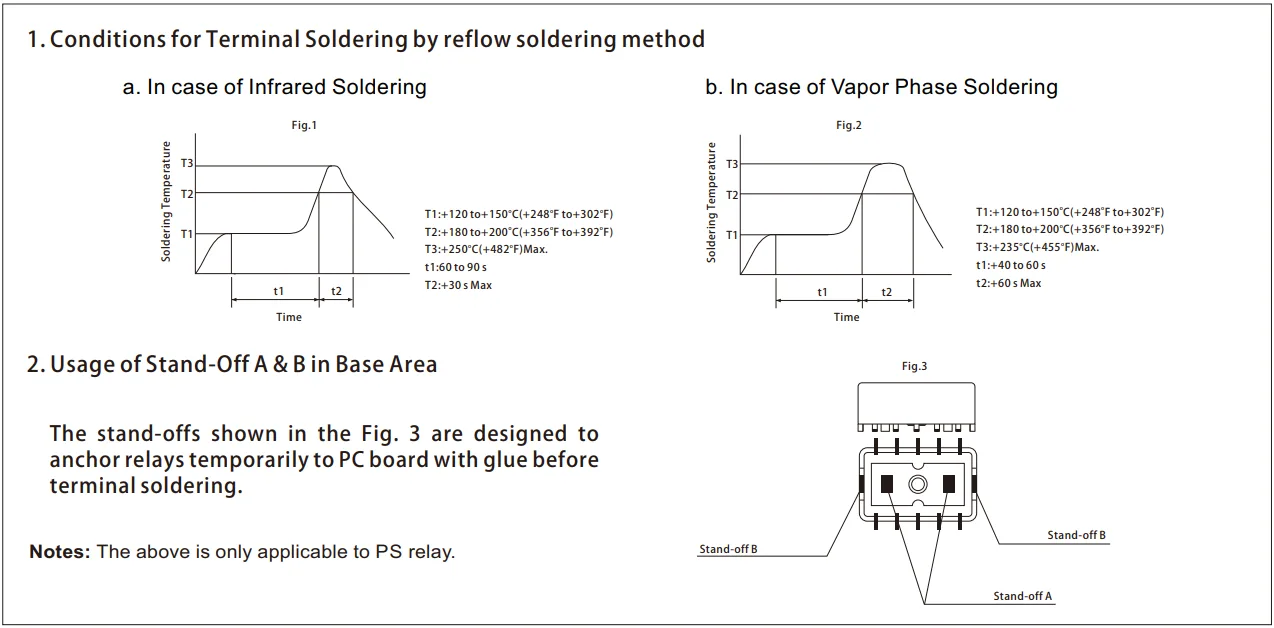

260℃±5℃ 5s±0.5s |
IEC 68-2-58 Test Td |
|
Temperature Range |
-40℃~85℃(-40° F~185° F) |
|
|
Mass |
Approx. 1.5g |
|
|
Safety approval |
UL&CUR |
T V |
|
Load |
1A,2A/30VDC 0.5A/125VAC |
1A/30VDC 0.5A/125VAC |
