Slim PCB Power Relay

You can rest assured to buy Slim PCB Power Relay from our factory and we will offer you the best after-sale service and timely delivery.Our products have a good quality&price advantage and cover most of the European and American markets. We look forward to becoming your long-term partner in China.
◉ 7A switching capability
◉ High sensitivity: 200mW
◉ Ambient operating temeprature：max 105℃
◉ Product in accordance to IEC60335-1 available
◉ RoHS Compliant

Model:NT10

Product Description

7A/250VAC,5A/30VDC high capacity switching.
Small size, light weight and low coil power consumption.

PC board mounting is available.

Ambient operating temperature: max. 105℃
Suitable for home appliance application , automatic system , electronic equipment , instruments ,communication device,
remote control device and so on.
Product in accordance to IEC60335-1 available.

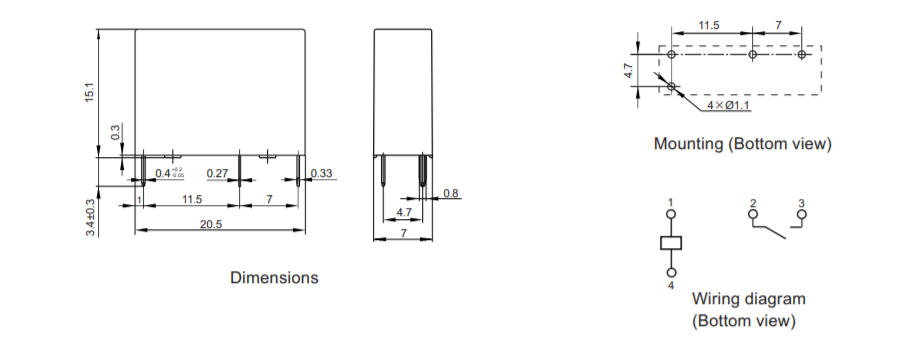

Ordering Information

1 Part number:NT10
2 Contact arrangement:A:1A
3 Enclosure:S:Wash tight ; Nil: Flux proof
4 Coil rated voltage(V):DC:5,12,18,24
5 Contact material:Nil:AgSnO₂; N:AgNi

6 W: 335 compliant; Nil:Standard

Contact Data

Coil Parameter

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.

Characteristics

Insulation Resistance	1000MΩ min (at 500VDC)	Item 4.11 of IEC 61810-7
Dielectric Strength Between Contacts Between Contact and Coil	50Hz 750V 50Hz 4000V	Item 4.9 of IEC 661810-7 Item 4.9 oflEC 61810-7
Impulse Withstand Voltage (Between Contact and Coil)	10kV (1.2/50 ns)	Item 4.10 of IEC 61810-7
Shock Resistance	Functional:98m/s²	Item 4.26 of IEC 61810-7
Shock Resistance	Destructive:980m/s²	Item 4.26 of IEC 61810-7
Vibration Resistance	Functional: 10Hz-55Hz Double amplitude 1.5mm	Item 4.28 of IEC 61810-7
Vibration Resistance	Destructive: 10Hz-55Hz Double amplitude 1.5mm	Item 4.28 of IEC 61810-7
Terminals Strength	5N	Item 4.24 of IEC 61810-7
Ambient Temperature	-40℃~105℃
Relative Humidity	5% to 85%	Item 4.16 of IEC61810-7
Mass	Approx.4g	Item 4.7 oflEC 61810-7
