50A Subminiature High Power Relay With 8KV  Surge Voltage
  • 50A Subminiature High Power Relay With 8KV  Surge Voltage - 0 50A Subminiature High Power Relay With 8KV  Surge Voltage - 0

50A Subminiature High Power Relay With 8KV Surge Voltage

With years of experience in production 50A Subminiature High Power Relay With 8KV Surge Voltage, Huaguan can supply a wide range of 50A Subminiature High Power Relay With 8KV Surge Voltage. High quality products can meet many applications, if you need, please get our online timely service about products. In addition to the product list below, you can also customize your own unique prouducts according to your specific needs.

◉ Small size
◉ 50A switching capability
◉ Plastic sealed and flux proofed types available
◉ Meets UL 508 standard, conforms to IEC61810-1 reinforced insulation
◉ 5kV dielectric strength between the coil and contact, 8kV surge voltage
◉ RoHS Compliant

Model:NT98

Send Inquiry

PDF DownLoad

Product Description

As the professional manufacturer, we would like to provide you 50A Subminiature High Power Relay With 8KV Surge Voltage. And we will offer you the best after-sale service and timely delivery. Sincerely look forward to cooperating with you in the near future.

50A switching capability.
Max. Switching power can achieve 13850VA.
Meets UL 508 standard, conforms to IEC61810-1 reinforced insulation.
Approved by UL, T V and CQC.
5kV dielectric strength between the coil and contact, 8kV surge voltage.

Operated in machine tool electric appliance, electric equipment, air conditioner and various household appliances.


Ordering Information

1 Part number:NT98
2 Common pin and N.O pin width:Nil:stand; W:3.3mm
3 Contact arrangement:A:1A
4 Enclosure:S: Wash tight; E: Flux proof

5 Contact material:S:AgSnO₂
6 Coil power:0.9:0.9W; 1.5:1.5W
7 Coil rated voltage(V):DC:5,6,9,12,24,48


1) Wash tight plastic case with knock off nib.


Contact Data

 2 Remove vent nib after soldering and cleaning.


Coil Parameter

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.


Safety Approvals


Characteristics

Insulation Resistance

1000MΩ min (at 500VDC)

Item 4.11 of IEC 61810-7

Dielectric Strength

Between Contacts

Between Contact and Coil

50Hz 1500V

50Hz 5000V

Item 4.9 of IEC 61810-7

Item 4.9 oflEC 61810-7

Surge Voltage (between contact and coil)

8kV

Item 4.10 of IEC 61810-7

Clearance/Creepage

6.4mm/8.0mm



Shock Resistance

Functional: 98m/s²  11ms

Item 4.26 of IEC 61810-7

Destructive: 980m/s²                                      11 ms

Item 4.26 of IEC 61810-7

Vibration Resistance

10Hz-55Hz Double amplitude 1.5mm

Item 4.28 of IEC 61810-7

Terminals Strength

10N

Item 4.24 of IEC 61810-7

Ambient Temperature

-40℃~105℃



Relative Humidity

5% to 85%

Item 4.16 of IEC61810-7

Mass

18g

Item 4.7 of IEC 61810-7

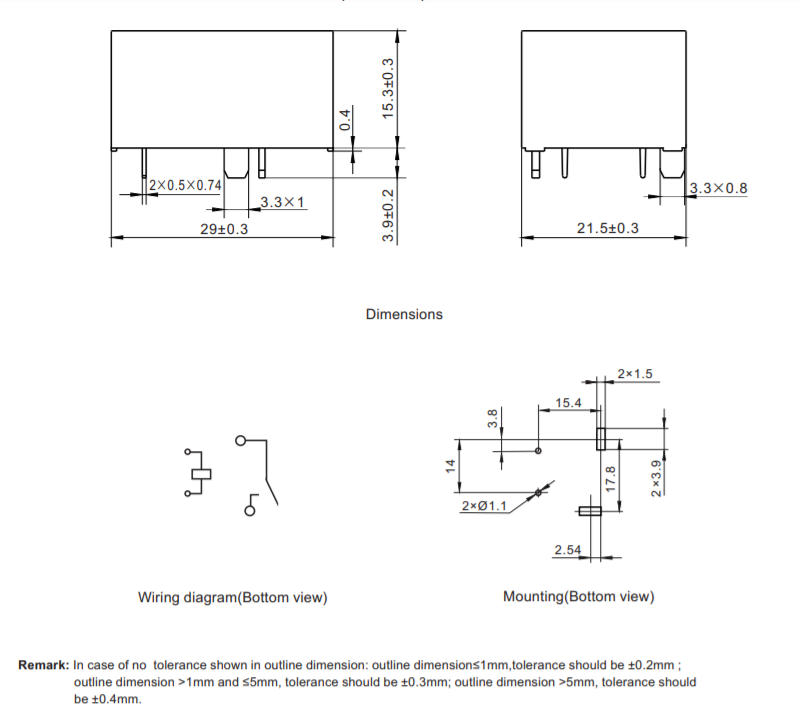

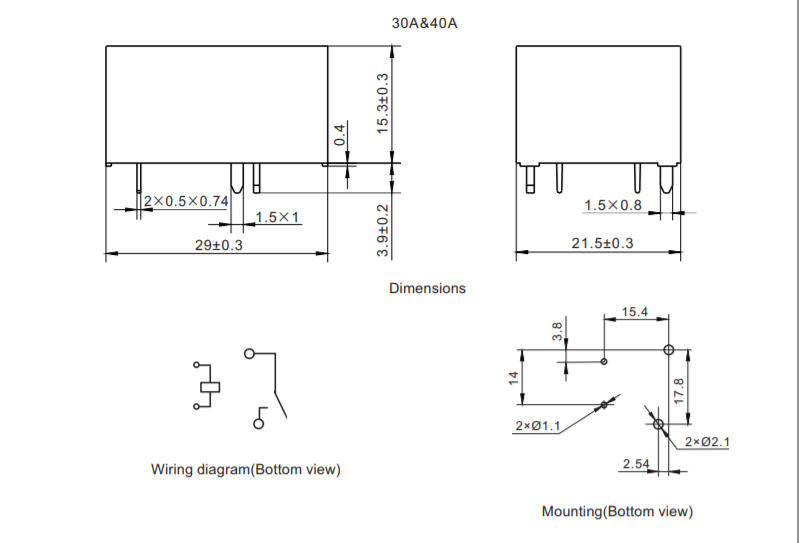

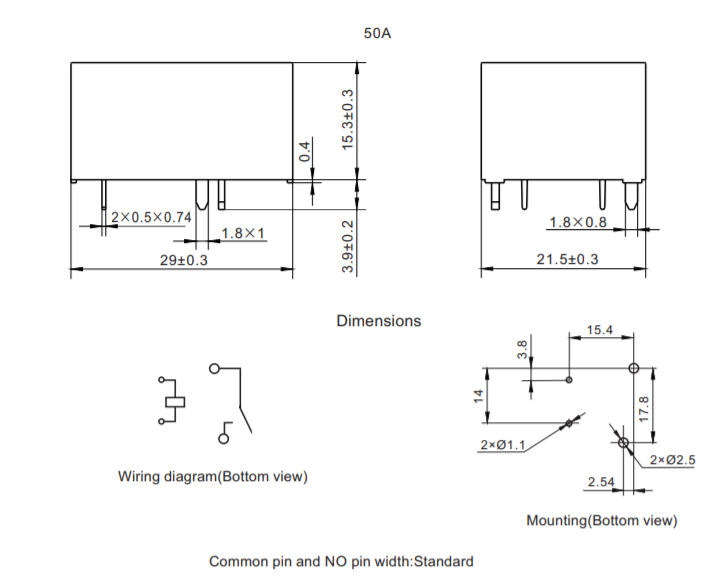

Dimensions


Reference Data
