Subminiature Automotive Relay

As the professional manufacture, we would like to provide you Subminiature Automotive Relay. And we will offer you the best after-sale service and timely delivery. Sincerely look forward to cooperating with you in the near future.

◉ Micro-mini PCB relay
◉ Small size light weight
◉ Switching capacity up to 25A motor lock
◉ RoHS Compliant

Model:NG8N

Send Inquiry

PDF DownLoad

Product Description

Ningbo Huaguan is a professional China Subminiature Automotive Relay manufacturer and supplier, if you are looking for the best Subminiature Automotive Relay with low price, consult us now!

Small size and light weight.
Low coil power consumption.
Self-locking motor load can achieve 25A .
PC board relay with high reliability.
Suitable for reflow soldering.
NG8NW relay is with two circuits.

Suitable for home appliance application , motor positive-negative control, wiper and so on.


Ordering Information

1 Part number:NG8N NG8NW
2 Sensitivity:
 1:Standard
 1S:High sensitivity
 1L:High temperature
 1H:High temperature /High sensitivity
3 Soldering method:NIL: Standard;R: Reflow soldering
4 Contact arrangement:GN8N:C:1C; NG8NW:2C:2C(Twin)
5 Coil power:0.64:0.64W;0.80:0.80W
6 Coil rated voltage(V): DC:12


Contact Data


Coil Parameter

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.
2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.


Characteristics

Insulation Resistance

100MΩ min (at 500VDC)

Item 4.11 of IEC 61810-7

Dielectric Strength

Between Contacts

Between Contact and Coil

50Hz 500VAC

50Hz 500VAC

Item 4.9 of IEC 61810-7

Item 4.9 of IEC 61810-7

Shock Resistance

Functional: 98m/s²

Item 4.26 of IEC 61810-7

Destructive:980m/s²

Item 4.26 of IEC 61810-7

Vibration Resistance

10Hz-500Hz Double amplitude 1.5mm

Item 4.28 of IEC 61810-7

Terminals Strength

5N

Item 4.24 of IEC 61810-7

Ambient Temperature

-40~105℃



Relative Humidity

5% to 85%

Item 4.16 of IEC 61810-7

Mass

4.1g 8g(NG8NW)

Item 4.7 of IEC 61810-7

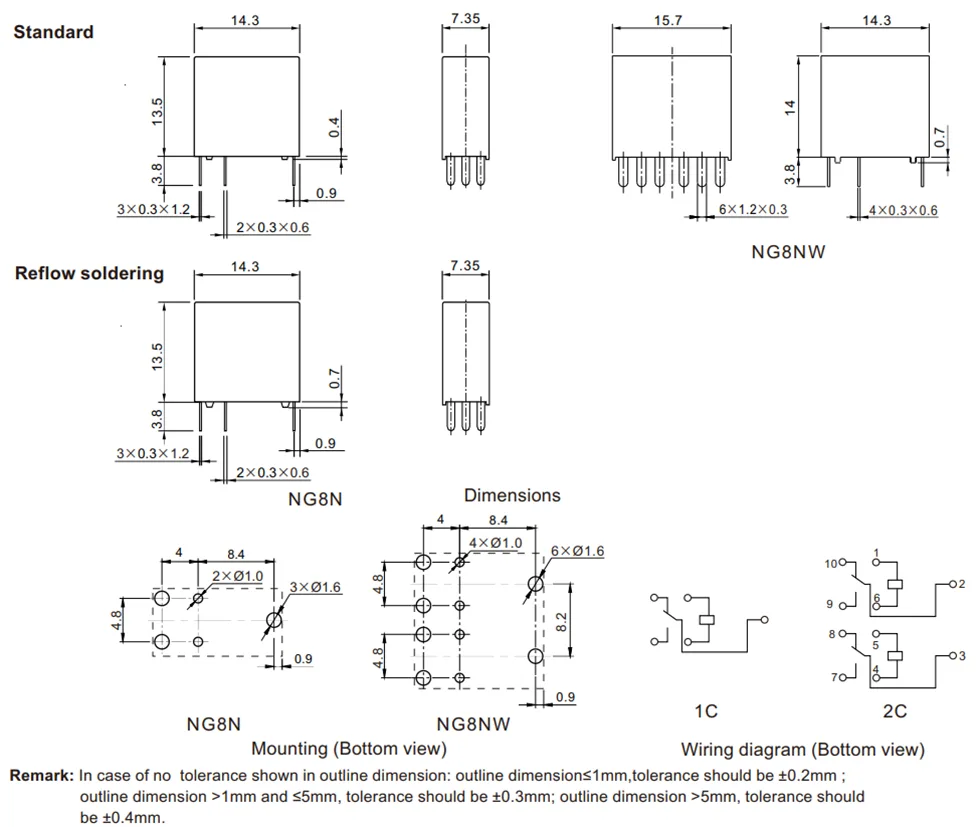

Dimensions

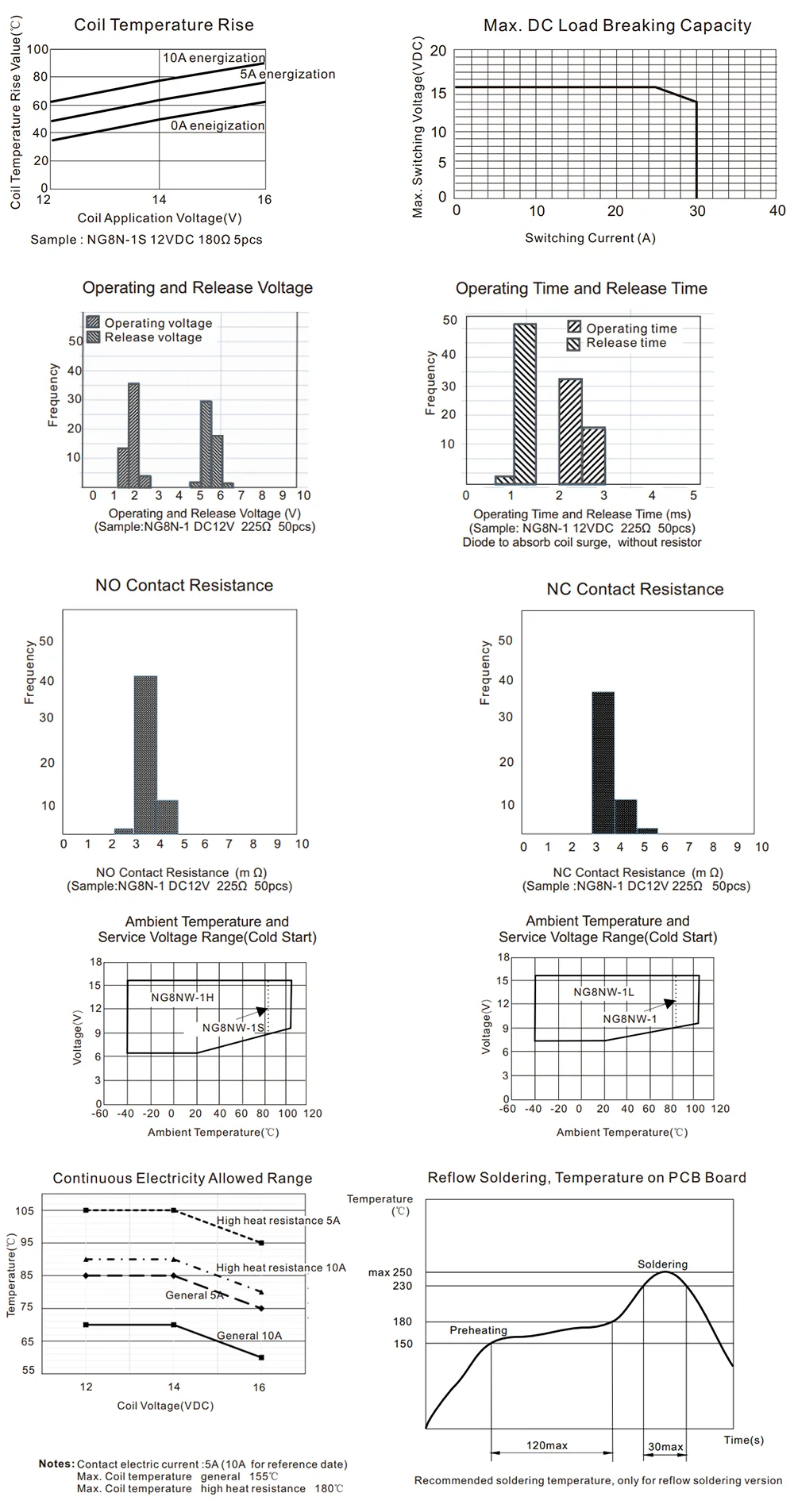

Reference Data
