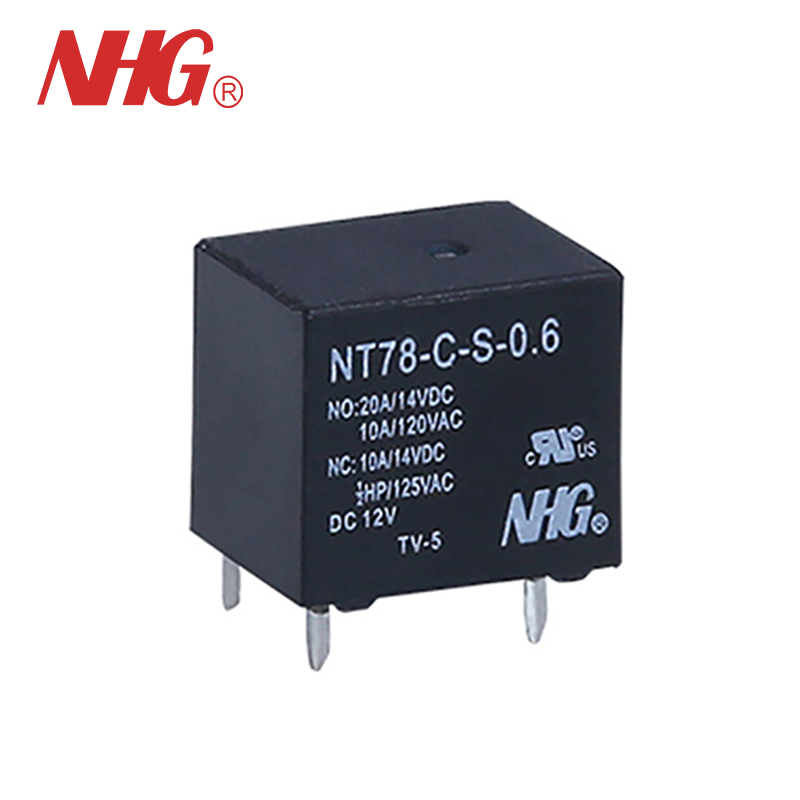

Miniature Automotive PCB Relay
  • Miniature Automotive PCB Relay - 0 Miniature Automotive PCB Relay - 0

Miniature Automotive PCB Relay

As the professional manufacturer, we would like to provide you Miniature Automotive PCB Relay. And we will offer vou the best after-sale service andtimely delivery.

◉ 20A switching capability
◉ Fully automated assembly
◉ Plastic sealed and flux proofed types available
◉ RoHS Compliant

Model:NT78

Send Inquiry

PDF DownLoad

Product Description

As the professional manufacture, we would like to provide you Miniature Automotive PCB Relay. And we will offer you the best after-sale service and timely delivery. Sincerely look forward to cooperating with you in the near future.

20A switching capability

Fully automated assembly
Plastic sealed and flux proofed types available
RoHs Compliant

Small size, light weight.

Low coil consumption.
PC board mounting.
Suitable for household electrical appliances, automation system, electronic equipment, instrument, meter,telecommunication facilities and remote control facilities.


Ordering Information

1 Part number NT78
2 Contact arrangement: A:1A; B:1B; C:1C
3 Enclosure: S:Wash tight       NIL:Flux proof

4 Coil power: 0.6:0.6W; 0.8:0.8W
5 Coil rated voltage: (V) DC:6,9,12,24


Contact Data

Contact Arrangement

1A(SPSTNO) 1B(SPSTNC) 1C(SPDT(B-M))

Contact Material

AgSnO₂

Contact Rating (Resistive

NO:20A/14VDC 10A/120VAC.5A/250VACIA.qnA/d/lx/nnNC: 15A/14VDC, 10A/120VAC,5A/250VACIA dUA/14VUG

Motor Load :1/2HP 125VAC

TV-5

Max. Switching Power

420W 1250VA

Max. Switching Voltage

30VDC 277vAe

Max. Switching Current:30A

Voltage Dro

p(lnitial)

Typ. 50mV(at10A)

Item 4.12 of IEC 61810-7

Operational

Life



Electrical

1X105

Item 4.30 of IEC 61810-7

Mechanical

1X107

Item 4.31 of IEC 61810-7

CAUTION: 1.For the intermediate current, it only applies to the room temperature.


Coil Parameter

Dash

numbers

Coil voltage

VDC

Coil resistance

Ω±10%

Pick-up

 voltage

VDC(max)

(80%of rated

voltage )

Drop-out

voltage

VDC(min)

(5% of rated

 voltage)

Coil

power

W

Operate

time

ms

Release

time

ms

Rated

Max.

006-600

6

6.6

60

4.8

0.30

0.6

≤10

≤5

009-600

9

9.9

135

7.2

0.45

012-600

12

13.2

240

9.6

0.60

024-600

24

26.4

960

19.2

1.20

006-800

6

6.6

45

4.8

0.30

0.8

≤10

≤5

009-800

9

9.9

102

7.2

0.45

012-800

12

13.2

180

9.6

0.60

024-800

24

26.4

720

19.2

1.20

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.
2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.


Characteristics

Insulation Resistance

100MQ min (at 500VDC)

Item 4.11 of IEC61810-7

Dielectric Strength

Between Contacts

Between Contact andCoil

50Hz 500V

50Hz 500V

Item 4.9 of IEC 61810-7

Item 4.9 of IEC 61810-7

Shock Resistance

98m/s²            11ms

Item 4.26 of IEC 61810-7

Vibration Resistance

10Hz-55Hz Double amplitude 1.5mm

Item 4.28 of IEC 61810-7

TerminalsStrength

10N

Item 4.24 of IEC 61810-7

Ambient Temperature

-40℃~85℃



Relative Humidity

5%to85%

Item 4.16 of IEC 61810-7

Mass

6g

Item 4.7 of IEC 61810-7



Safety Approvals

Safety approval

UL&CUR

Load

NO:20A/14VDC 10A/120VAC

NC:10A/14VDC

1/2HP 125VAC TV-5



Dimensions


CAUTION: In case of no tolerance shown in outline dimension: outline dimension 1mm tolerance should be 0.2mm outline dimension >1mm and 5mm, tolerance should be 0.3mm; outline dimension >5mm, tolerance should  be 0.4mm.


Reference Data
