30A Miniature Automotive PCB Relay
  • 30A Miniature Automotive PCB Relay - 0 30A Miniature Automotive PCB Relay - 0

30A Miniature Automotive PCB Relay

The following is the introduction of high quality 30A Miniature Automotive PCB Relay, hoping to help you better understand it. Welcome new and old customers to continue to cooperate with us to create a better future!

◉ Minimal Weight
◉ Limiting continuous current 30A
◉ Wide temperature range : -40°C to 105° C
◉ RoHS Compliant

Model:NV23K

Send Inquiry

PDF DownLoad

Product Description

As the professional manufacture, we would like to provide you high quality 30A Miniature Automotive PCB Relay. And we will offer you the best after-sale service and timely delivery.

Small size, light weight.
Withstands high temperature, operating under 105 ambient temperature.
Heavy contact load switching current up to 30A.

Suitable for automobile and lamp accessories application.


Ordering Information

1 Part number:NV23K,NV23KW(Wide pin)
2 Contact arrangement:A:1A; C:1C
3 Enclosure:S: Wash tight
 Z: Flux proof
4 Coil power:0.55:0.55W;
 0.57:0.57W
5 Coil rated voltage(V):DC:5,10,12,24
6 Contact current:30:30A; 20:20A

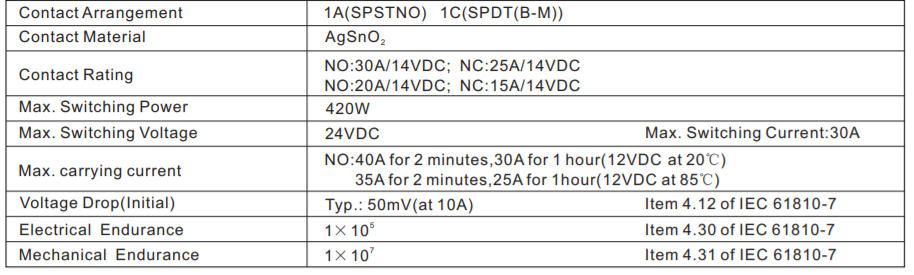

Contact Data

CAUTION: 1.For the intermediate current, it only applies to the room temperature.

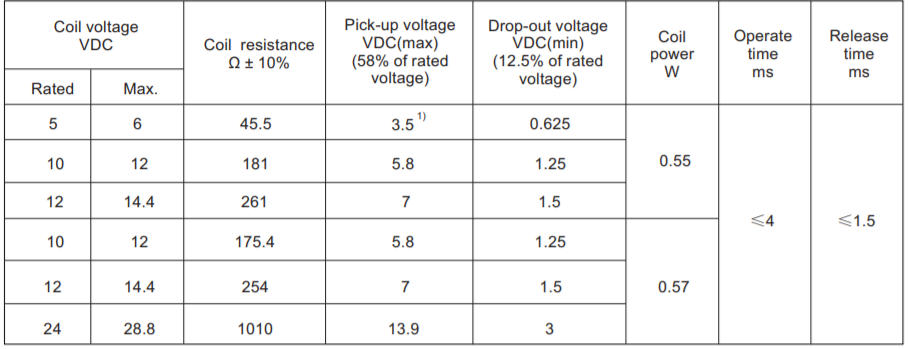

Coil Parameter

CAUTION:

 1). Max.Pick-up voltage of 5VDC, 70% of rated voltage .

 2).The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.
 3).Pickup and release voltage are for test purposes only and are not to be used as design criteria.


Characteristics

Insulation Resistance

1000MΩ min (at 500VDC)

Item 4.11 of IEC61810-7

Dielectric Strength

Between Contacts

Between Contact andCoil

50Hz 500V

50Hz 500V

Item4.9 of IEC61810-7

Item4.9 of IEC61810-7

Shock Resistance

294m/s² 6ms

Item 4.26oflEC 61810-7

Vibration Resistance

10Hz-500Hz Double amplitude 1.27mm 60m/s²

Item 4.28 oflEC 61810-7

TerminalsStrength

10N

Item 4.24 oflEC 61810-7

Ambient Temperature

-40℃~105℃



Relative Humidity

5% to 85%

Item 4.16 oflEC 61810-7

Mass

4g

Item 4.7 oflEC 61810-7



Dimensions
