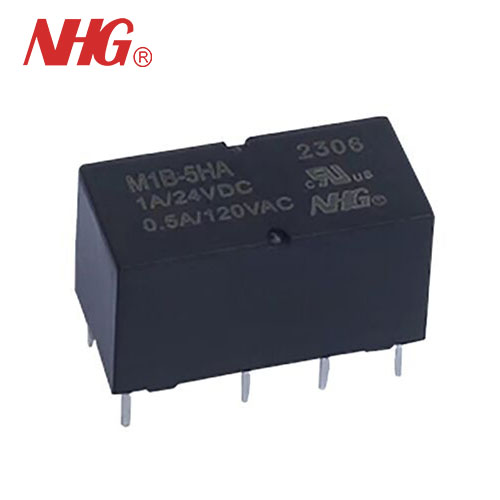

High Reliability Bifurcated Contact Signal Relay

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality High Reliability Bifurcated Contact Signal Relay. We look forward to cooperating with you.We will always adhere to the principle of "quality first, client first," and we cordially invite customers to visit us for consultation.

◉ Fully sealed for immersion cleaning
◉ Conforms to FCC Part 68 1500V Surge and Dielectric 1000VAC
◉ RoHS Compliant

Model:M1B

Send Inquiry

PDF DownLoad

Product Description

High quality High Reliability Bifurcated Contact Signal Relay is offered by China manufacturer Huaguan. Buy High Reliability Bifurcated Contact Signal Relay which is of high quality directly with low price.

DIL pitch terminals. High sensitivity.

Conforms to FCC Part 68 1.5kV surge and dielectric 1000VAC.
High reliability bifurcated contact.
Application for telecommunication equipment, office equipment, security alarm systems, measuring instruments,medical monitoring equipment, audio visual equipment, flight simulator, sensor control.


Ordering Information

1 Part number: M1B
2 Coil rated voltage: DC:3:3V; 5:5V; 6:6V; 9:9V ;
 12:12V; 24:24V; 48:48V
3 Enclosure: H: Wash tight
4Contact material: Nil: AgPd; W: AgNi
5 Nominal coil power: Nil:0.55W; A:0.4W


Contact Data

Contact Arrangement

2C(DPDT(B-M)) (Bifurcated Crossbar)

Contact Material

AgPd(Au plated ) AgNi(Au plated)

Contact Rating (resistive)

0.01mA/10mV to 1A/24VDC; 0.5A/120VAC

Max. Switching Power

60W         125VA

Min. Switching load:0.01mA/10mV(Reference Value)

Max. Switching Voltage

220VDC    250VAC

Max. Switching Current:2A

Contact Resistance

≤50mΩ

Item 4.12 of IEC 61810-7

Operational

Life

Electrical

1A/24VDC:5X105

(Ag Ni:1X105)

2A/30VDC 1X105

0.5A/120VAC:2X105

Item 4.30 of IEC 61810-7

Mechanical

1X108

Item 4.31 of IEC 61810-7

CAUTION:
Relays previously tested or used above 10mA resistive at 6V maximum DC or peak AC open circuit are not recommended for subsequent use in low level applications


Coil Parameter

Dash

numbers

Coil voltage

VDC

Coil resistance

Ω±10%

Pick-up

 voltage

VDC(max)

(70% of rated

voltage )

Drop-out

voltage

VDC(min)

(10% of rated

voltage)

Coil

power

W

Operate

time

ms

Release

time

ms

Rated

Max.

MIB-003

3

4.2

16

2.1

0.3

0.56

Approx.

4.5

Approx.

1.5

MIB -005

5

7.0

45

3.5

0.5

0.56

MIB -006

6

8.4

66

4.2

0.6

0.55

MIB -009

9

12.3

140

6.3

0.9

0.58

MIB -012

12

17.4

280

8.4

1.2

0.52

MIB -024

24

34.0

1070

16.8

2.4

0.54

MIB -048

48

64.9

3900

33.6

4.8

0.59

MIB -003A

3

4.9

22.5

2.1

0.3

0.4

Approx.

4.5

Approx.

1.5

MIB -005A

5

8.1

62.5

3.5

0.5

0.4

MIB -006A

6

9.7

90

4.2

0.6

0.4

MIB -009A

9

14.5

203

6.3

0.9

0.4

MIB -012A

12

19.4

360

8.4

1.2

0.4

MIB -024A

24

38.9

1440

16.8

2.4

0.4

MIB -048A

48

77.8

5760

33.6

4.8

0.4

 CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.


Characteristics

Electrostatic Capacitance





Between Open Contacts

Approx.0.7pF

Item 4.41 of IEC 61810-7

Between Coil & Contacts

Approx.1.0pF

Item 4.41 of IEC 61810-7

Between Contact Poles

Approx.0.9pF

Item 4.41 of IEC 61810-7

Insulation Resistance

1000MΩ min (at 500VDC)

Item 4.11 of IEC 61810-7

Dielectric Strength





Between Open Contacts

Between Coil & Contacts

Between Contact Poles

1000VAC 1min 10OOV^C 1min 1000VAC 1min

Item 4.9 of IEC 61810-7

Surge Withstand Voltage





Between Open Contacts Between Coil & Contacts Between Contact Poles

1500V

1500V

1500V

FCC 68

Shock Resistance

Functional:98m/s² 11ms;

Destructive:980 m/s² 6ms

Item 4.26 of IEC 61810-7

Vibration Resistance

10Hz-55Hz Double amplitude

Functional: 1.5mm Destructive:5mm

Item 4.28 of IEC 61810-7

Terminals Strength

5N

Item 4.24 of IEC 61810-7

Temperature Range

-40℃~65℃(-40° F~149° F) (-40℃~70℃ for 0.4W Coil)



Mass

Approx. 4.8g

Item 4.7 of IEC 61810-7


Safety Approvals

Safety approval

UL&CUR

T V

Load

20A/30VDC;1A/24VDC; 0.5A/120VAC

1A/24VDC; 0.5A/120VAC


Dimensions
