Fuse Design Automotive Relay
  • Fuse Design Automotive Relay - 0 Fuse Design Automotive Relay - 0

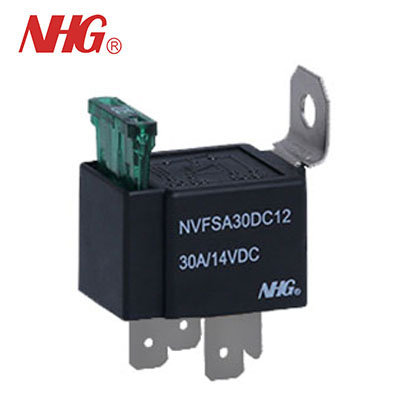

Fuse Design Automotive Relay

Huaguan is a professional China Fuse Design Automotive Relay manufacturer and supplier, if you are looking for the best Fuse Design Automotive Relay with low price, consult us now!

◉ 30A Switching Capability
◉ 1 Form A contact arrangement
◉ RoHS Compliant


Send Inquiry

PDF DownLoad

Product Description

As the professional manufacturer, we would like to provide you Fuse Design Automotive Relay. And we will offer you the best after-sale service and timely delivery. Sincerely look forward to cooperating with you in the near future.

Small size and light weight.
Heavy contact load (30A).
Fuse design available.
Suitable for automobile and lamp accessories application.

Insert mounting ,With metal frame.

Ordering Information

1 Part number:NVFS
2 Contact arrangement:A:1A
3 Contact rating:15:15A/14VDC; 30:30A/14VDC
4 Coil rated Voltage(V):DC: 6,12,24

Contact Data

Coil Parameter


1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.


Insulation Resistance

100MΩ min (at 500VDC)

Item 4.11 of IEC 61810-7

Dielectric Strength Between Contacts Between Contact and Coil

50Hz 500V

50Hz 750V

Item 4.9 of IEC 61810-7

Item 4.9 of IEC 61810-7

Shock Resistance

147m/s² 11ms

Item 4.26 of IEC 61810-7

Vibration Resistance

10Hz〜40Hz Double amplitude 1.27mm

Item 4.28 of IEC 61810-7

Terminals Strength


Item 4.24 of IEC 61810-7

Ambient Temperature



Relative Humidity

5% to 85%

Item 4.16 of IEC 61810-7



Item 4.7 of IEC 61810-7
