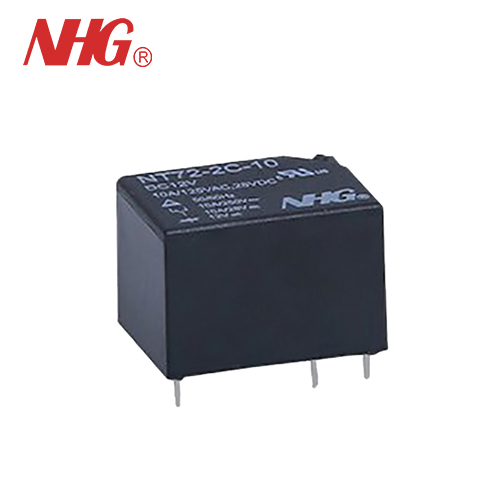

Single-pole 12A PCB Power Relay
  • Single-pole 12A PCB Power Relay - 0 Single-pole 12A PCB Power Relay - 0

Single-pole 12A PCB Power Relay

As the professional manufacturer, we would like to provide you Single-pole 12A PCB Power Relay. And we will offer you the best after-sale service and timely delivery. Sincerely look forward to cooperating with you in the near future.

◉ 12A switching capability
◉ Dielectric strength of 4KV between coil and contacts
◉ RoHS Compliant

Model:NT72-2

Send Inquiry

PDF DownLoad

Product Description

As the professional manufacturer, we would like to provide you Single-pole 12A PCB Power Relay. And we will offer you the best after-sale service and timely delivery. Sincerely look forward to cooperating with you in the near future.

Small size, light weight.
Reliable quality.
PC board mounting.
Suitable for household electrical appliances, automation system, electronic equipment, instrument, meter,

telecommunication facilities and remote control facilities


Ordering Information

1 Part number:NT72, NT72-2
2 Contact arrangement:A:1A; B:1B; C:1C
3 Enclosure:S:Wash tight; NIL:Flux proof
4 Contact current:3A,5A,6A,10A,12A
5 Coil rated voltage(V):DC:3,5,6,9,12,18,24,48
6 Coil power:0.36:0.36W; 0.45:0.45W; 0.51:0.51W


Contact Data

CAUTION: 1.For the intermediate current, it only applies to the room temperature.


Coil Parameter

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.


Characteristics

Insulation Resistance

500MΩ min (at 500VDC)

Item 4.11oflEC 61810-7

Dielectric Strength

Between Contacts

Between Contact and Coil

50Hz 1000V

50Hz 2500V 4000V(NT72-2)

Item 4.9 of IEC 61810-7

Item 4.9 of IEC 61810-7

Shock Resistance

98m/s²  11ms

Item 4.26 of IEC 61810-7

Vibration Resistance

10Hz~55Hz Double amplitude 1.5mm

Item 4.28 of IEC 61810-7

Terminals Strength

10N

Item 4.24 of IEC 61810-7

Ambient Temperature

-40℃~85℃



Relative Humidity

5% to 85%

Item 4.16 of IEC 61810-7

Mass

11g

Item 4.7 of IEC 61810-7



Safety Approvals


Dimensions


Reference Data
