Miniature High Power Cube Relay
  • Miniature High Power Cube Relay - 0 Miniature High Power Cube Relay - 0

Miniature High Power Cube Relay

Huaguan is a professional China Miniature High Power Cube Relay manufacturer and supplier, if you are looking for the best Miniature High Power Cube Relay with low price, consult us now!

◉ 15A switching capability
◉ Plastic sealed and flux proofed types available
◉ RoHS Compliant


Send Inquiry

PDF DownLoad

Product Description

As the professional manufacturer, we would like to provide you Miniature High Power Cube Relay. And we will offer you the best after-sale service and timely delivery. Sincerely look forward to cooperating with you in the near future.

Small size, light weight .
Low coil power consumption.
PC board mounting.
Suitable for household electrical appliances, automation system, electronic equipment, instrument and meter application.

TV-5 remote control TV receivers, monitor display, audio equipment high and rushing current application.

Ordering Information

1 Part number:JZC-22F
2 Enclosure:S:Wash tight;
 F:Flux proof
3 Contact arrangement:A:1A; C:1C
4 Contact rating:5A,7A,12A,15A/125VAC 28VDC;
 3A,6A,7A/220VAC 6A/250VAC
5 Coil power:L:0.36W; D:0.45W
6 Coil rated voltage(V):DC:3,5,6,9,12,24,48

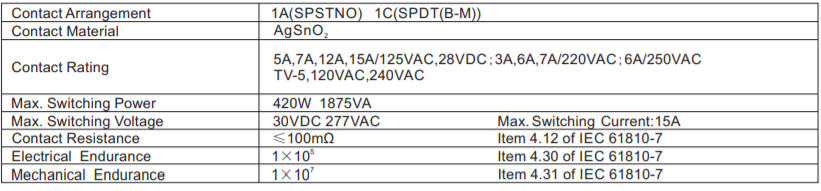

Contact Data

CAUTION: 1.For the intermediate current, it only applies to the room temperature.

Coil Parameter


1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.


Insulation Resistance

100MΩ min (at 500VDC)

Item 4.11 of IEC 61810-7

Dielectric Strength

Between Contacts

Between Contact and Coil

50Hz 750V

50Hz 1500V 50Hz

Item 4.9 of IEC 61810-7

Item 4.9 of IEC 61810-7

Shock Resistance


Item 4.26 of IEC 61810-7

Vibration Resistance

10Hz-55Hz Double amplitude 1.5mm

Item 4.28 of IEC 61810-7

Terminals Strength


Item 4.24 of IEC 61810-7

Ambient Temperature



Relative Humidity

5% to 85%

Item 4.16 of IEC 61810-7



Item 4.7 of IEC 61810-7

Safety Approvals


Reference Data
