Miniature High Power Relay With 50A Rating
  • Miniature High Power Relay With 50A Rating - 0 Miniature High Power Relay With 50A Rating - 0

Miniature High Power Relay With 50A Rating

As the professional China Miniature High Power Relay With 50A Rating factory, we can guarantee the stable performance relay and competitive latching relay quotation.

◉ TV-8
◉ Compatct size
◉ 50A switching capability
◉ Small size of 15.7mm height
◉ 4kV dielectric strength between the coil and contact
◉ RoHS Compliant

Model:NT99

Send Inquiry

PDF DownLoad

Product Description

As the professional manufacturer, we would like to provide you Miniature High Power Relay With 50A Rating. And we will offer you the best after-sale service and timely delivery. Sincerely look forward to cooperating with you in the near future.

50A switching capability.
Max. switching power can achieve 13850VA.
Size decreased of 1/3 compared with the same pin relay.
4kV dielectric strength between the coil and contact.
New energy relay.

Operated in machine tool electric appliance, electric equipment, air conditioner and various household appliances.


Ordering Information

1 Part number:NT99
2 Common pin and N.O pin width:Nil:stand; W:3.3mm
3 Contact arrangement:A:1A; B:1B; C:1C
4 Enclosure:S: Wash tight; E: Flux proof
5 Contact material:S:AgSnO₂
6 Coil power:0.9:0.9W; 1.2:1.2W
7 Coil rated voltage(V):DC:5,6,9,12,24,48

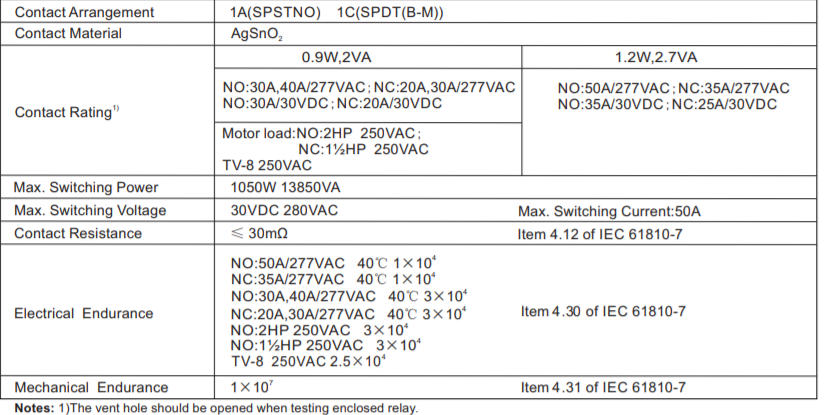

Contact Data

Note:Remove vent nib after soldering and cleaning.

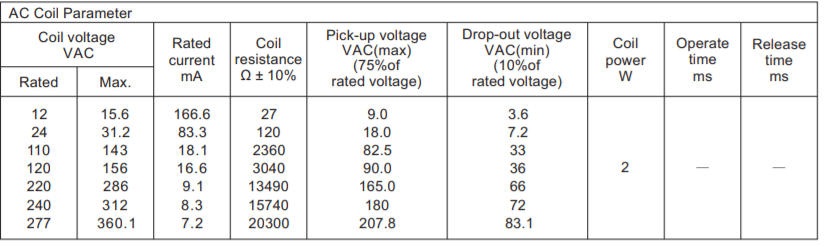

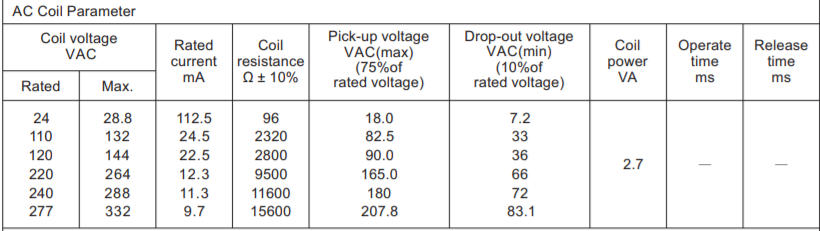

Coil Parameter

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.


Safety Approvals


Characteristics

Insulation Resistance

1000MΩ min (at 500VDC)

Item 4.11 of IEC 61810-7

Dielectric Strength

Between Contacts

Between Contact and Coil

50Hz 1500V

50Hz 4000V

Item 4.9 of IEC 61810-7

Item 4.9 oflEC 61810-7

Shock Resistance

Functional: 98m/s²  11ms

Item 4.26 of IEC 61810-7

Destructive: 980m/s²  11ms

Item 4.26 of IEC 61810-7

Vibration Resistance

10Hz〜55Hz Double amplitude 1.5mm

Item 4.28 of IEC 61810-7

Terminals Strength

10N

Item 4.24 of IEC 61810-7

Ambient Temperature

-40℃~85℃



Relative Humidity

5% to 85%

Item 4.16 of IEC61810-7

Mass

21g

Item 4.7 of IEC 61810-7

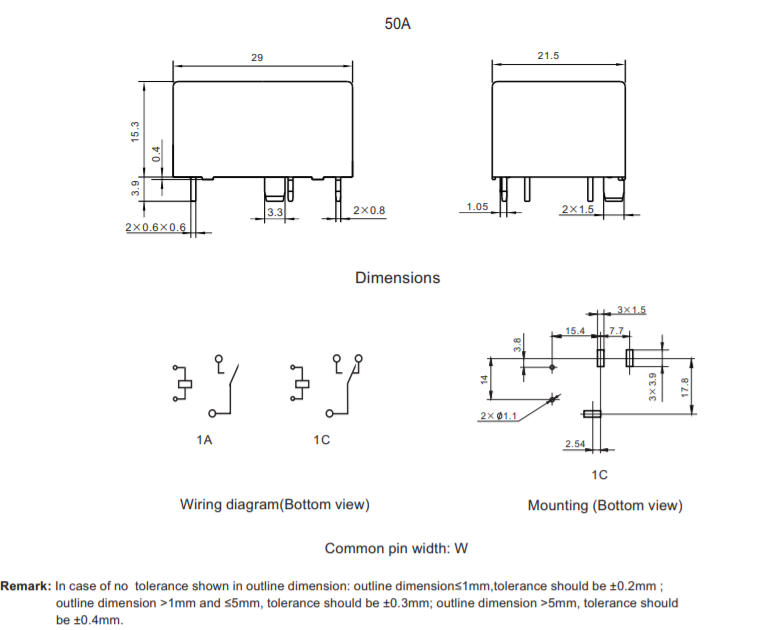

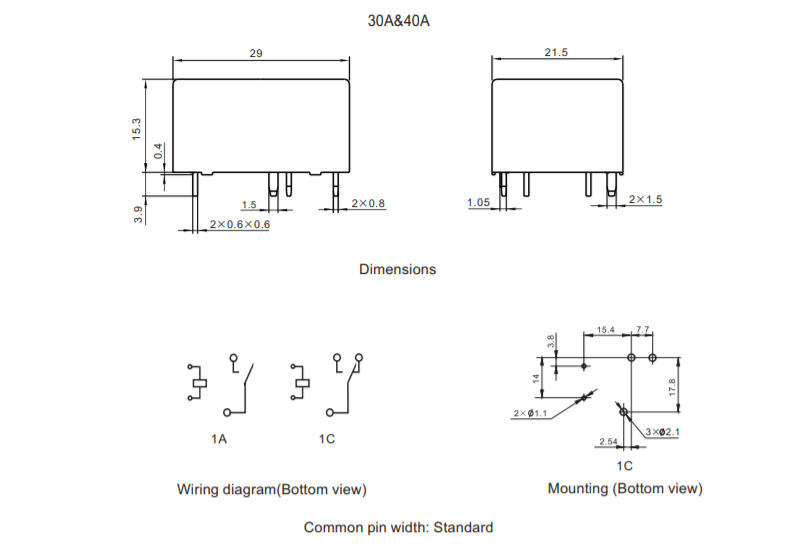

Dimensions
