Miniature High Power Relay 16A/250VAC

As the professional manufacturer, we would like to provide you Miniature High Power Relay 16A/250VAC. And we will offer you the best after-sale service and timely delivery. Sincerely look forward to cooperating with you in the near future.
◉ Low height:15.8mm
◉ 16A switching capability
◉ Optional for explosion proof version
◉ Plastic sealed and flux proofed types available
◉ Product in accordance to IEC60335-1 available
◉ Dielectric strength of 5000 V between coil and contacts
◉ RoHS Compliant

Model:NT75

Product Description

Small size, light weight.Low coil consumption.
Switching capacity up to 20A.
PC board mounting.
Suitable for household electrical appliances, automation system, electrical equipment, instrument, meter
telecommunication facilities and remote control facilities.

Product in accordance to IEC60335-1 available.

Ordering Information

1 Part number:NT75
2 Contact arrangement:
1A:1A A2:1A2 1C:1C C2:1C2 2A:2A 2C:2C
3 Enclosure:S: Wash tight; Z: Flux proof
4 Coil power:0.25:0.25W; 0.41:0.41W
0.53:0.53W (2A:10A/250VAC,30VDC)
5 Pole-distance:3.5:3.5mm; 5:5.0mm

6 Contact meteial:NIL:AgSnO₂; N:AgNi

7 Contact plating:Nil:Standard; G:Au plated

8 Contact rating:
1A,1C:12A,16A/250VAC 30VDC
2A,2C(0.41W):NO:8A/277VAC,30VDC
NC:8A/277VAC,30VDC
2A(0.53W):10A/250VAC,30VDC
9 Coil rated voltage(V): DC:5,6,9,12,24,48,110

10 W:335 compliant; Nil:Standard

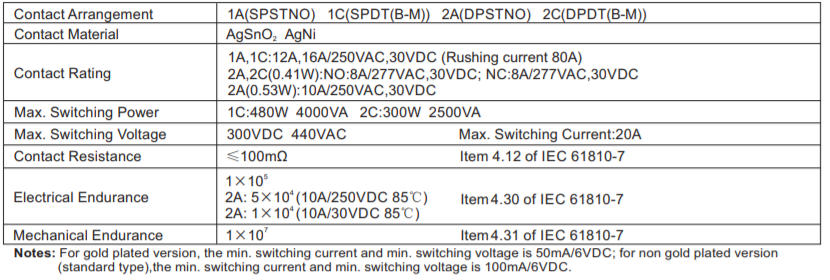

Contact Data

CAUTION:

1.For the intermediate current(10mA/6VDC~100mA/28VDC), it only applies to the room temperature.
2.For gold plated version, the min. Switching current and min. Switching voltage is 50mA/6VDC; for non gold plated version(standard type),the min. switching current and min. switching voltage is 100mA/6VDC.

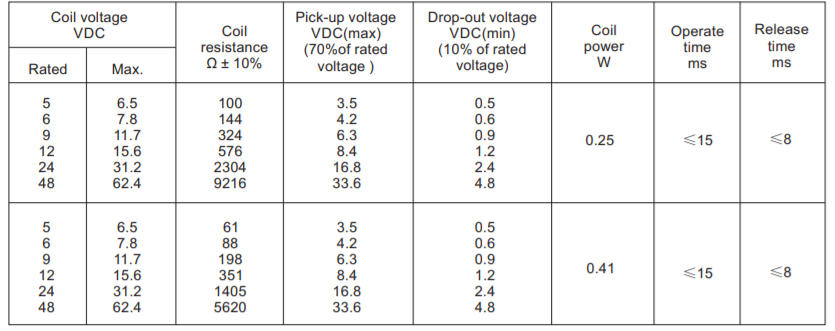

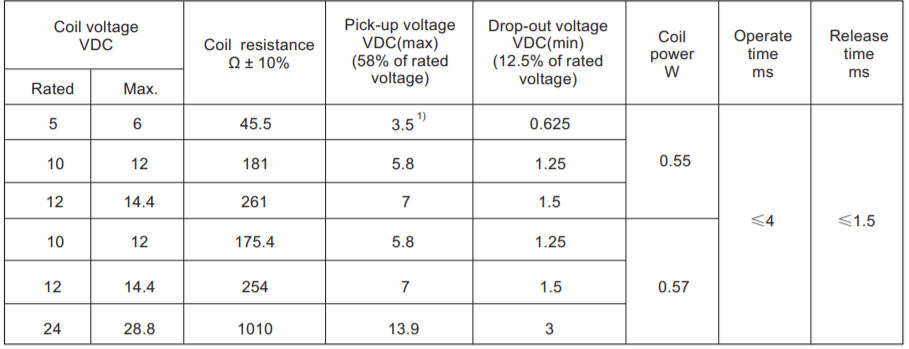

Coil Parameter

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.

Characteristics

Insulation Resistance	1000MΩ min (at 500VDC)	Item 4.11 of IEC 61810-7
Dielectric Strength Between Contacts Between Contact and Coil	50Hz 1000V 50Hz 5000V	Item 4.9 of IEC 61810-7 Item 4.9 of IEC 61810-7
Shock Resistance	98m/s² 11ms	Item 4.26 of IEC 61810-7
Vibration Resistance	10Hz~55Hz Double amplitude 1.5mm	Item 4.28 of IEC 61810-7
Terminals Strength	10N	Item 4.24 of IEC 61810-7
Ambient Temperature	-40℃~85℃
Relative Humidity	5% to 85%	Item 4.16 of IEC 61810-7
Mass	12.5g 13.2g	Item 4.7 of IEC 61810-7
