40A PCB Power Relay
  • 40A PCB Power Relay - 0 40A PCB Power Relay - 0

40A PCB Power Relay

The following is the introduction of high quality 40A PCB Power Relay, hoping to help you better understand it. Welcome new and old customers to continue to cooperate with us to create a better future!

◉ Heavy contact load
◉ 40A switching capability
◉ Low coil power consumption
◉ High dielectric strength type available
◉ Strong anti-shock, anti-vibration and high reliability
◉ Unenclosed , plastic sealed and flux proofed types available
◉ RoHS Compliant

Model:NT90

Send Inquiry

PDF DownLoad

Product Description

As the professional manufacturer, we would like to provide you 40A PCB Power Relay. And we will offer you the best after-sale service and timely delivery. Sincerely look forward to cooperating with you in the near future.

Small size, light weight.
Low coil power consumption, heavy contact load.
Strong anti-shock and anti-vibration, high reliability, long life.
PC board mounting.

Suitable for automobile, machine, electronic equipment, air conditioner and household appliances applications.


Ordering Information

1 Part number:NT90
2 Terminal R: without Pin 6; NIL: With Pin 6
3 Load:H:30A; N:40A
4 Contact arrangement:A:1A; B:1B; C:1C
5 Enclosure:S: Wash tight; D: Dust protected
 E: Flux proof; O: Unenclsed
6 Coil rated voltage(V):AC:12,24,110,120,220,240,277
 DC:3,5,6,9,12,15,18,24,48,110
7 Contact material:S: AgSnO₂;C:AgCdO
8 Resist heat class:B:130℃ F:155℃
9 Coil power:0.6:0.6W; 0.9:0.9W; 2:2VA


Contact Data


Coil Parameter

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.


CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.


Characteristics

Insulation Resistance

1000MΩ min (at 500VDC)

Item 4.11 of IEC 61810-7

Dielectric Strength

Between Contacts

Between Contact and Coil

50Hz 1500V

50Hz 2500V 4000V (Without Pin 6)*

Item 4.9 of IEC 61810-7

Item 4.9 of IEC 61810-7

Shock Resistance

Functional:98m/s² 11 ms

Item 4.26 of IEC 61810-7

Destructive: 980m/s² 11ms

Item 4.26 of IEC 61810-7

Vibration Resistance

10Hz*55Hz Double amplitude 1.5mm

Item 4.28 of IEC 61810-7

Terminals Strength

10N

Item 4.24 of IEC 61810-7

Ambient Temperature

-55℃~85℃



Relative Humidity

5% to 85%

Item 4.16 of IEC61810-7

Mass

25.7g(Unenclosed) 30g

Item 4.7 of IEC 61810-7

Please contact the sales representative if 4000V is required.


Safety Approvals

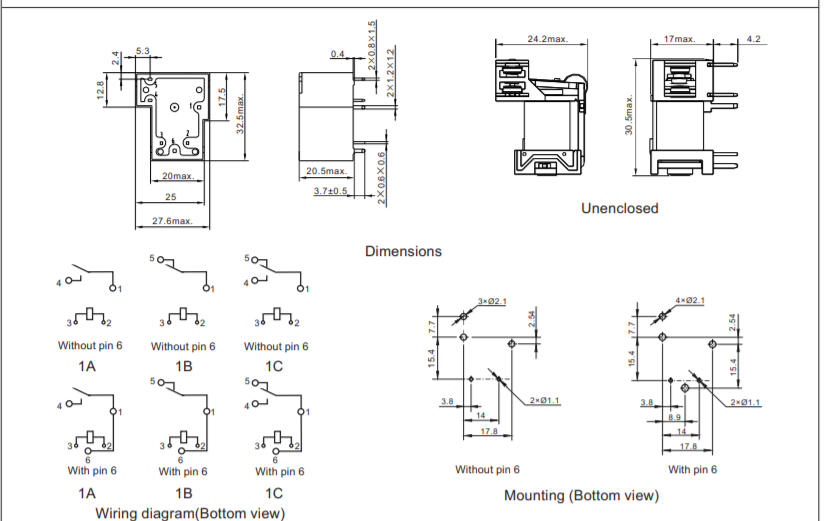

 Dimensions


Reference Data
