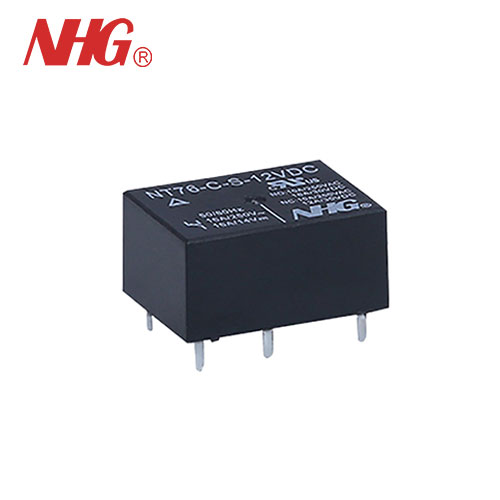

16A Subminiature Power PCB Relay
◉ High sensitivity ◉ Low height:11mm ◉ 16A switching capability ◉ 1 Form A and 1 Form C contact arrangement ◉ Plastic sealed and flux proofed types available ◉ RoHS CompliantModel:NT76
Send Inquiry
PDF DownLoad
Product Description
Super light in weight.
High sensitivity.
Switching capacity up to 16A.
High sensitivity.
Switching capacity up to 16A.
PC board mounting.
Ordering Information
1 Part number:NT76
2 Contact arrangement:A:1A; C:1C
3 Enclosure:S: Wash tight; Z: Flux proof
4 Coil rated voltage(V):DC:5,6,9,12,18,24,48
Contact Data
CAUTION: 1.For the intermediate current, it only applies to the room temperature.
Coil Parameter
CAUTION:
1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.
2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.
Characteristics
|
Insulation Resistance |
100MΩ min (at 500VDC) |
Item 4.11 of IEC61810-7 |
|
Dielectric Strength Between Contacts Between Contact and Coil |
50Hz 750V 1C:50Hz 1500V;1A:50Hz 2500V |
Item 4.9 of IEC 61810-7 Item 4.9 of IEC 61810-7 |
|
Shock Resistance |
98m/s² 11ms |
Item 4.26 of IEC 61810-7 |
|
Vibration Resistance |
10Hz~55Hz Double amplitude 1.5mm |
Item 4.28 of IEC 61810-7 |
|
TerminalsStrength |
10N |
Item 4.24 of IEC 61810-7 |
|
Ambient Temperature |
-40℃~85℃ |
|
|
Relative Humidity |
5% to 85% |
Item 4.16 of IEC 61810-7 |
|
Mass |
10g |
Item 4.7 of IEC 61810-7 |
Safety Approvals
Dimensions
