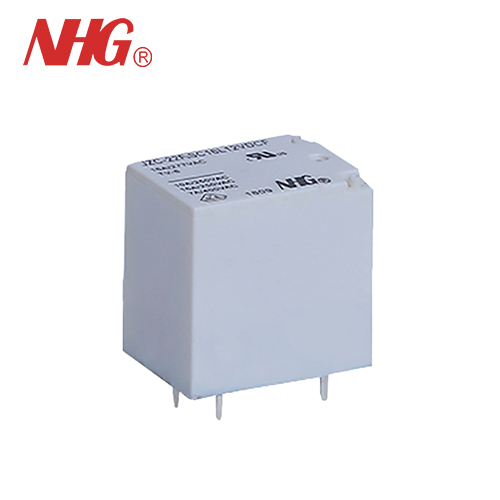

32A Miniature High Power Relay

◉ Contact Gap ≥ 2.1mm
◉ 32A switching capability
◉ Dielectric strength of 4kV between coil and contacts
◉ RoHS Compliant

Model:JZC-22F4

Small size, light weight , low coil power consumption.
Switching capacity can reach 32A/277VAC.
High dielectric strength.
Contact gap 2.1mm.
PC board mounting is available.
Power relay with high reliability , suitable for photovoltaic system (PV inverter), motor control, compressor

control and home appliance application.

Ordering Information

1 Part number:JZC-22F4
2 Enclosure S: Wash tight; F: Flux proof
3 Contact arrangement:A:1A
4 Contact rating:32A/277VAC
5 Coil power:T:2.8W; H:1.67W
6 Coil rated voltage(V):DC:9,12,24,48
7 Resist heat class: NIL Standard ;F:155℃

Contact Data

CAUTION: 1.For the intermediate current, it only applies to the room temperature.

Coil Parameter

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.
3.Coil holding voltage is 36% of nominal voltage after applying nominal voltage for 200 ms.

Characteristics

Insulation Resistance	1000MΩ min (at 500VDC)	Item 4.11 of IEC 61810-7
Dielectric Strength Between Contacts Between Contact and Coil	50/60HZ 2000V 1min 50/60Hz 4000V 1min	Item 4.9 of IEC 61810-7 Item 4.9 of IEC 61810-7
Shock Resistance	Functional: 98m/s²	Item 4.26 of IEC 61810-7
	Destructive: 980m/s²
Vibration Resistance	10Hz-55Hz Double amplitude 1.5mm	Item 4.28 of IEC 61810-7
Terminals Strength	10N	Item 4.28 of IEC 61810-7
Ambient Temperature	-40℃~105℃
Relative Humidity	5% to 85%	Item 4.16 of IEC 61810-7
Mass	16g	Item4.7of IEC61810-7
